PRODUCTS / LINE 01 / S25 SERIES
01

Traditional Insulated Panel Doors

Our core residential line: pre-painted galvanized steel sandwich panels with a cyclopentane-blown polyurethane foam core for strength, energy efficiency and a tight, gap-free fit between sections. Sectional overhead door.

REQUEST A QUOTE FOR THIS LINE DESIGN YOUR OWN DOOR →
Traditional Insulated Panel Doors
01 / SPECIFICATION

Key features

◆
27GA pre-painted galvanized steel construction
◆
Tongue-and-groove section joints for a strong, secure connection
◆
1-9/16" (40mm) standard thickness. 2" (51mm) steel-back, R-17.5, available as a special order - see the 2600 range below
◆
Precision-machined sections engineered for a tight, gap-free fit
◆
Polyurethane foam core insulation
02 / MODELS

Door models

DATASHEET
S2540 Stamped Carriage - real installed garage door
S2540 - Stamped Carriage
CONSTRUCTION
1-9/16" (40mm) insulated, 3 layer with polyurethane
STEEL GAUGE27GA steel (other gauges available on request)
INSULATIONR-14.7
S2520 Long Panel - real installed garage door
S2520 - Long Panel
CONSTRUCTION
1-9/16" (40mm) insulated, 3 layer with polyurethane
STEEL GAUGE27GA steel (other gauges available on request)
INSULATIONR-14.7

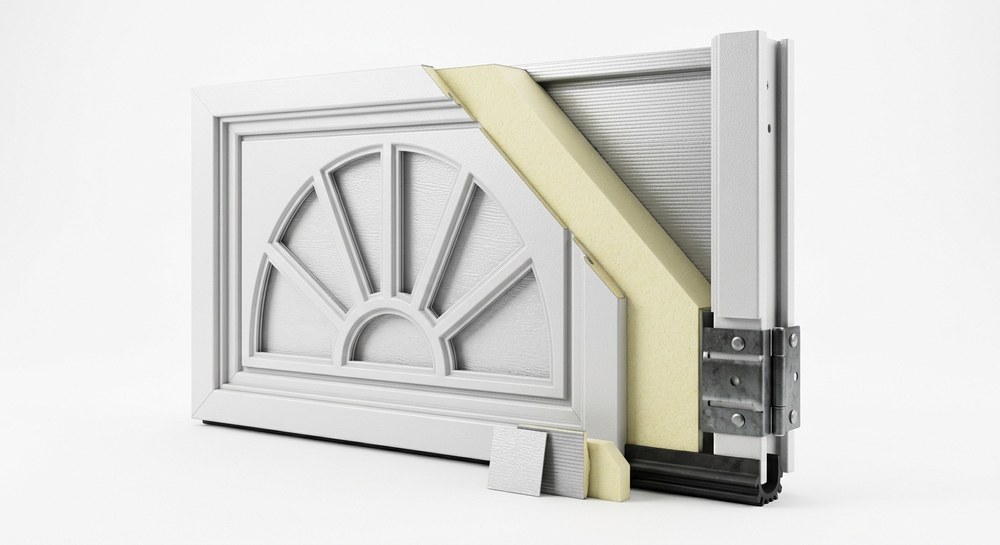

S2530 Short Panel - real installed garage door
S2530 - Short Panel
CONSTRUCTION
1-9/16" (40mm) insulated, 3 layer with polyurethane
STEEL GAUGE27GA steel (other gauges available on request)
INSULATIONR-14.7
2600 SERIES

2-inch insulated steel-back

SPECIAL ORDER ONLY

A separate, thicker steel-back range for projects that call for extra insulation. Not standard-stock inventory - estimated lead time 4-6 weeks.

2640 Stamped Carriage - real installed garage door
2640 - Stamped Carriage
CONSTRUCTION
2" (51mm) insulated steel-back with polyurethane
STEEL GAUGE27GA steel
INSULATIONR-17.5
2620 Long Panel - real installed garage door
2620 - Long Panel
CONSTRUCTION
2" (51mm) insulated steel-back with polyurethane
STEEL GAUGE27GA steel
INSULATIONR-17.5
2630 Short Panel - real installed garage door
2630 - Short Panel
CONSTRUCTION
2" (51mm) insulated steel-back with polyurethane
STEEL GAUGE27GA steel
INSULATIONR-17.5
2600 Flush - real installed garage door
2600 - Flush
CONSTRUCTION
2" (51mm) insulated steel-back with polyurethane
STEEL GAUGE27GA steel
INSULATIONR-17.5
03 / STYLES

Door styles

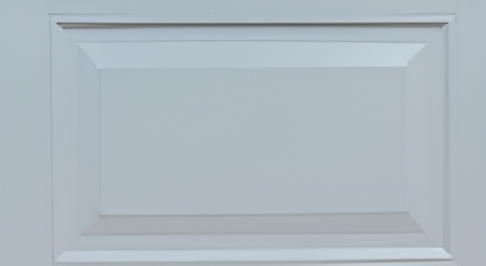

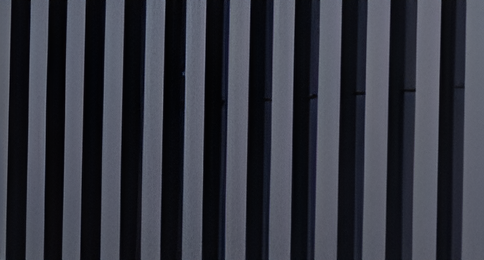

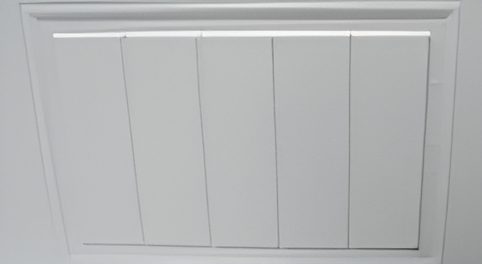

Traditional insulated panel - raised panel texture Traditional insulated panel - carriage groove texture Traditional insulated panel - vertical grille texture
Classic Cassette
Classic Cassette
Classic Cassette - Double Door
Double Door
Carriage Short
Carriage Short
Carriage Short - Double Door
Double Door
Raised Ranch
Raised Ranch
Raised Ranch - Double Door
Double Door
Carriage Long
Carriage Long
Carriage Long - Double Door
Double Door
04 / FINISH

Colors

BlackRAL 9005
WhiteRAL 9016
AlmondRAL 1015
SURFACE TEXTURE
Wood Grain - Black
Wood Grain - Black
Wood Grain - White
Wood Grain - White
Wood Grain - Almond
Wood Grain - Almond
05 / GLAZING

Window options

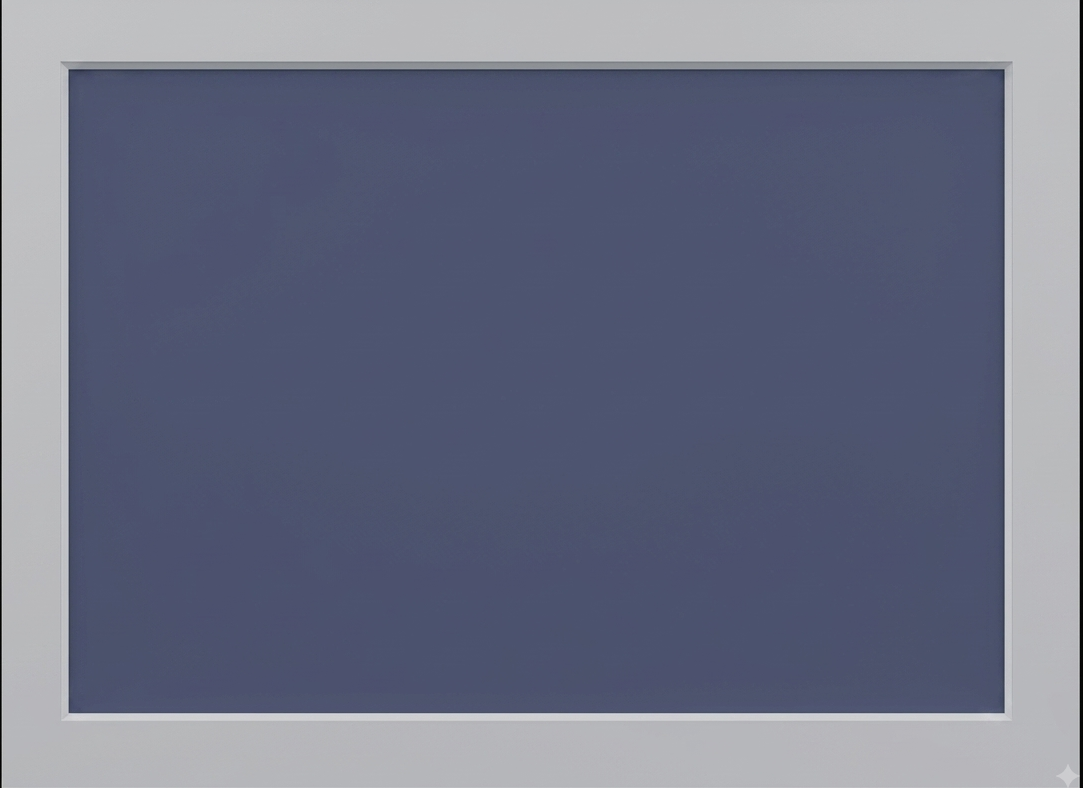

European Style Frame
European Style FrameCH-WD1001

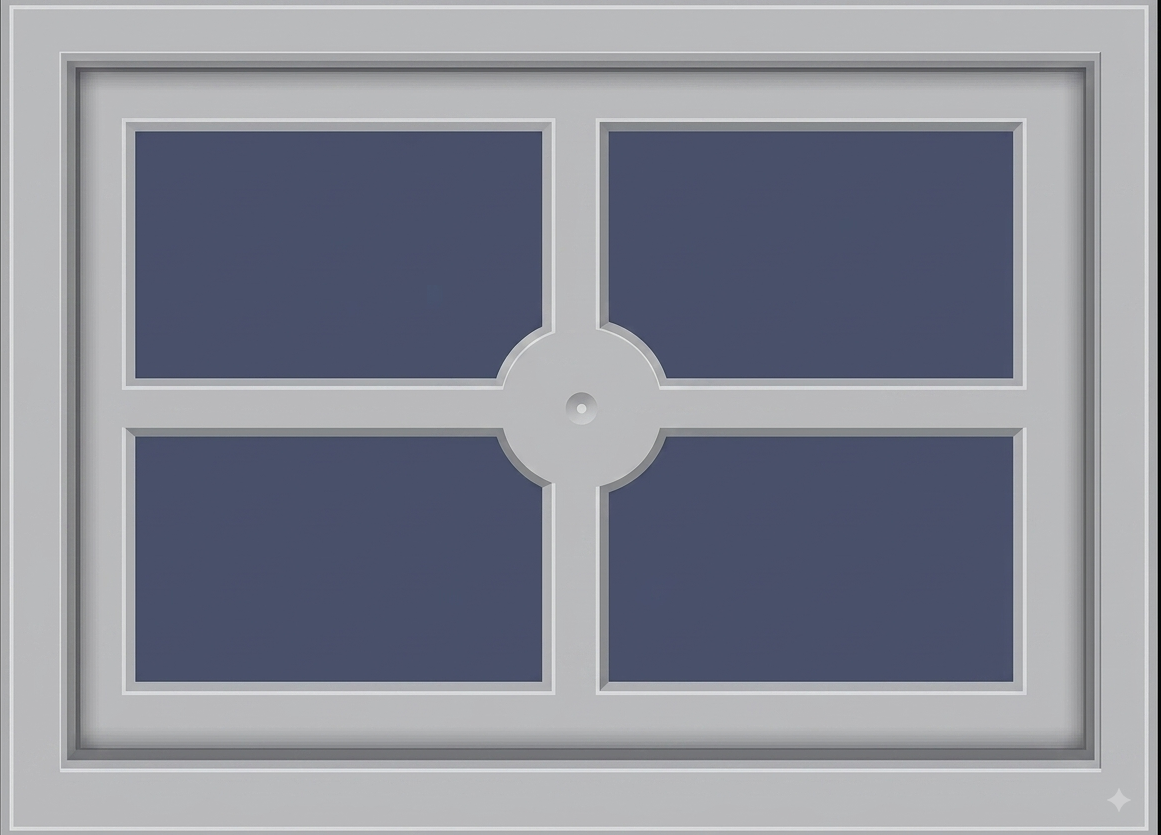

Square Cross Window
Square CrossCH-WD1002

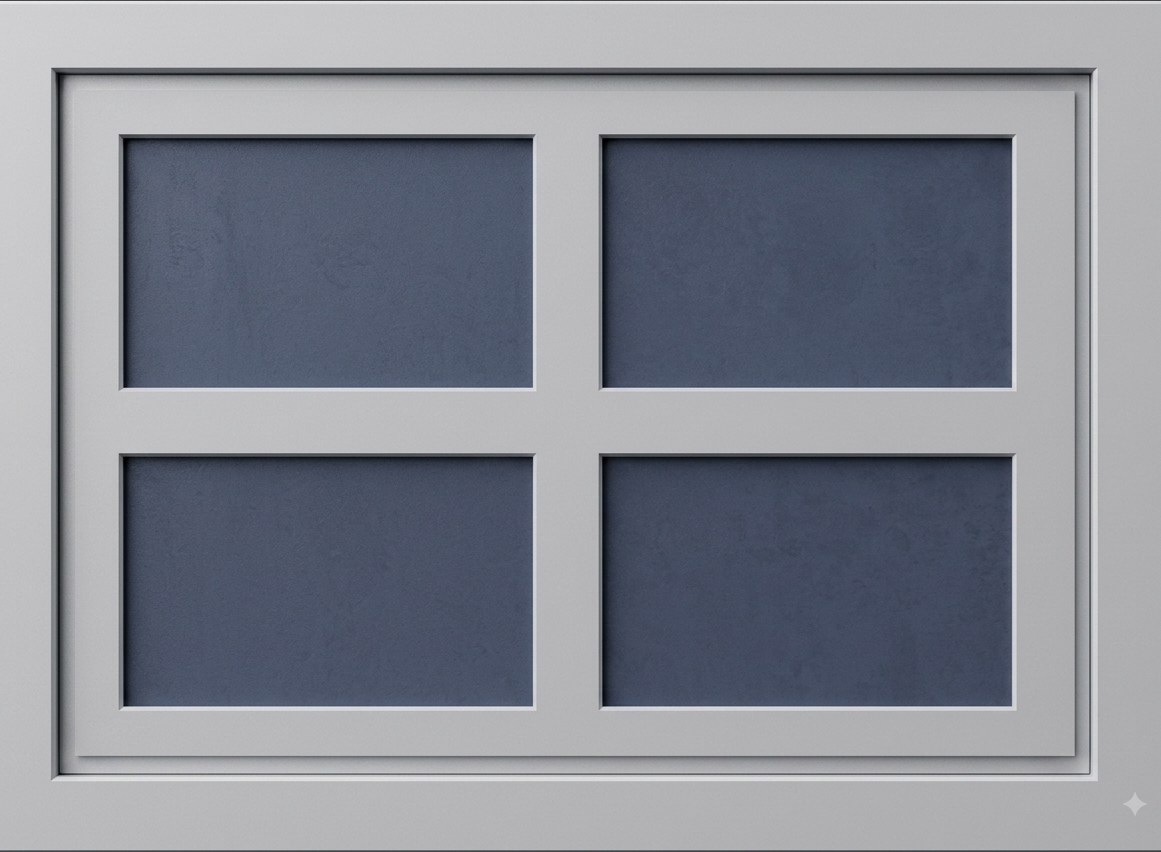

Cross Window
Cross WindowCH-WD1003

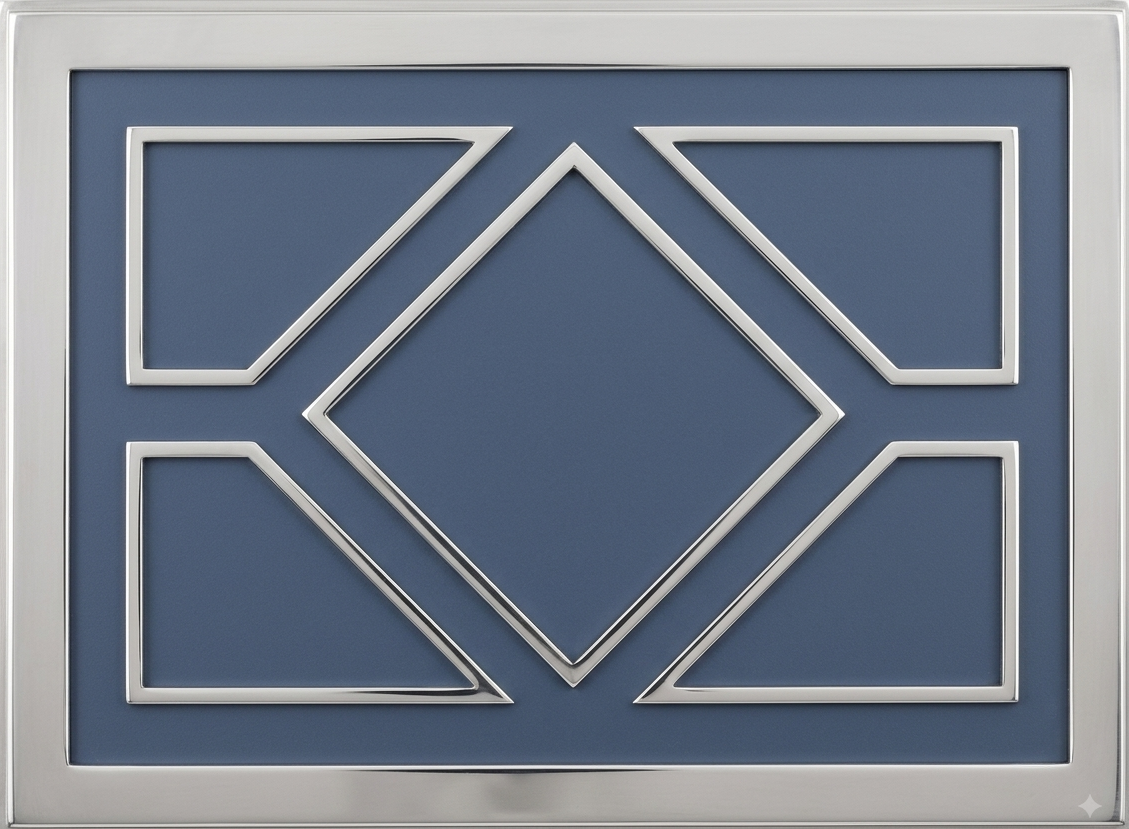

Diamond Window
Diamond WindowCH-WD1004

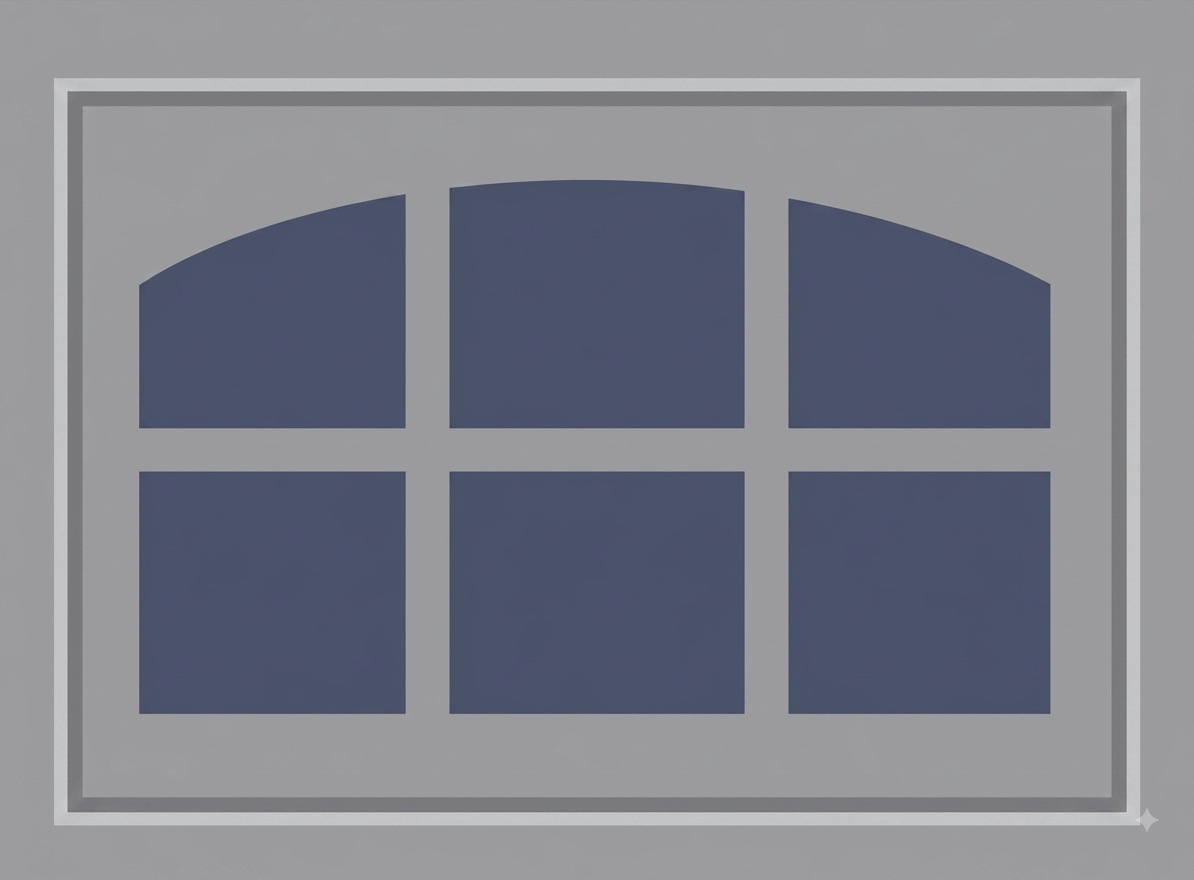

House-Like Window
House-LikeCH-WD1005

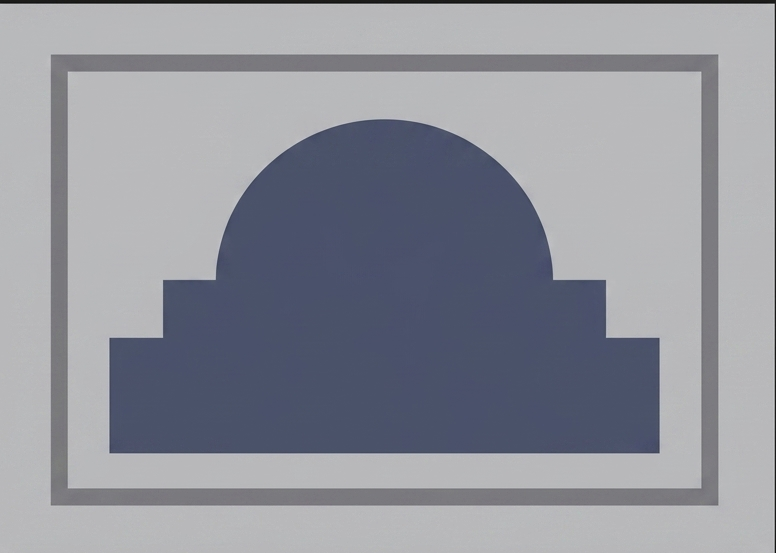

Mountain-Like Window
Mountain-LikeCH-WD1006

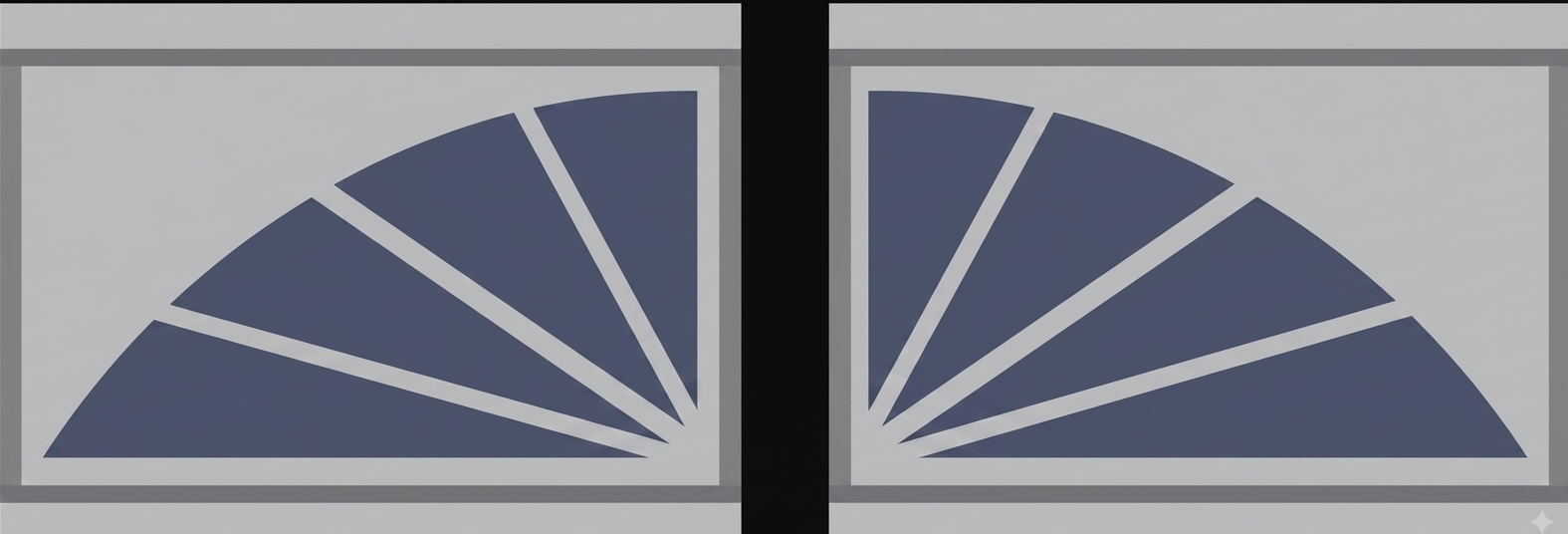

Sector Window A
Sector Window ACH-WD4001

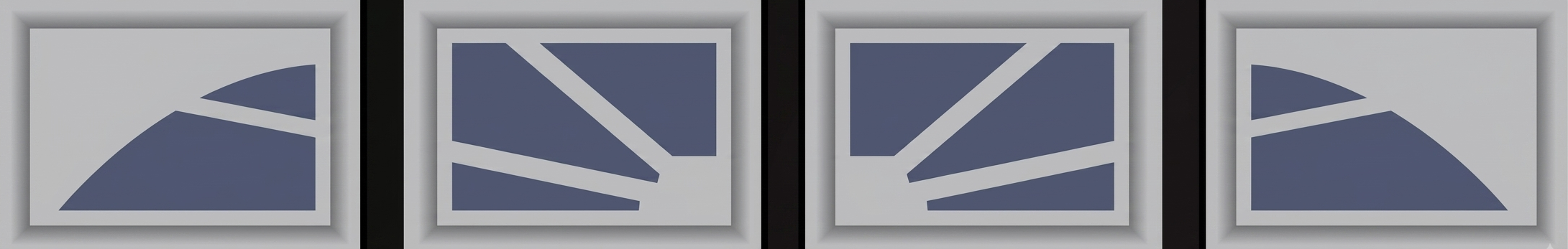

Sector Window B
Sector Window BCH-WD4003

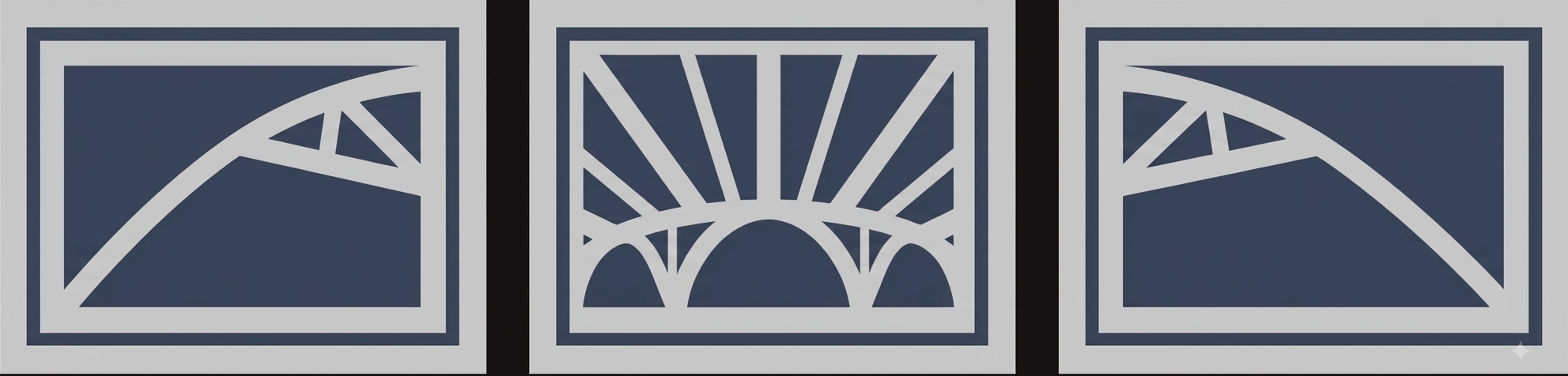

Sun Rising Window
Sun RisingCH-WD4002

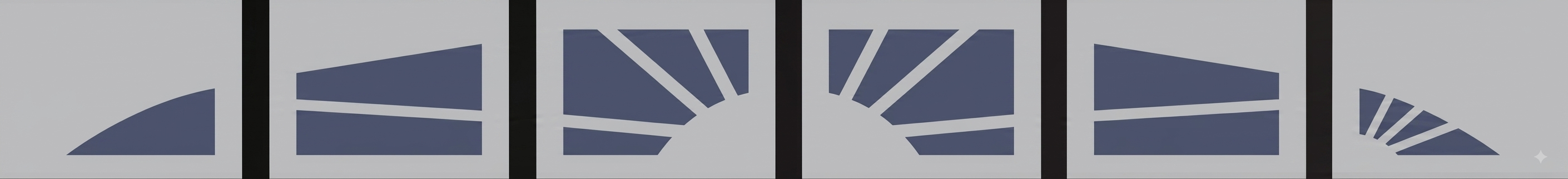

Radiation Window
Radiation WindowCH-WD4004
CH-WD3003 window
Panel FrameCH-WD3003
CH-WD3004 window
Diamond LatticeCH-WD3004
CH-WD3005 window
Arched ColumnCH-WD3005
CH-WD3006 window
Curved PanelCH-WD3006
CH-WD3007 window
Wide SunburstCH-WD3007
CH-WD3008 window
Curved Quad PanelCH-WD3008

Window frames are UV-protected and color-matched to the door panel finishes. Custom window options are also available, including horizontal rows, vertical stacks, staggered arrangements and different shapes, subject to model compatibility and confirmation.

06 / MATERIAL

Glazing types

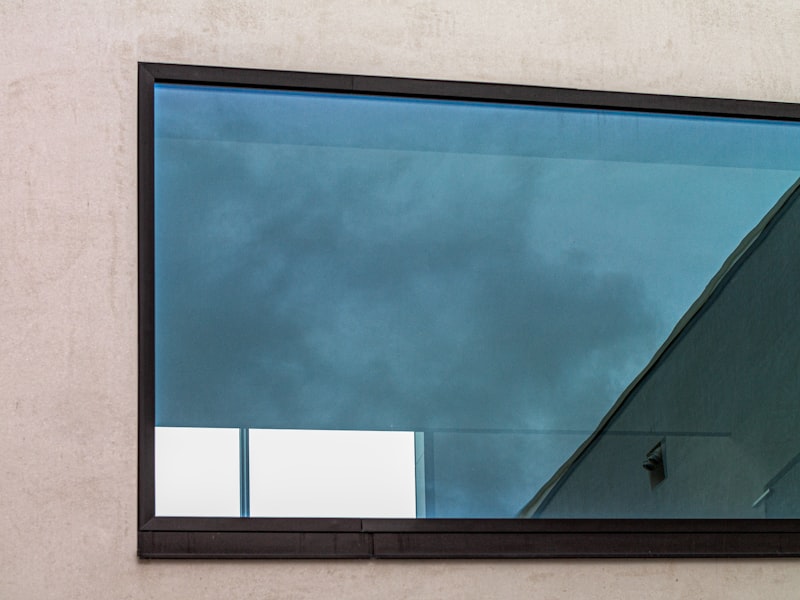

Clear Polycarbonate Glazing swatch
Clear (PC)

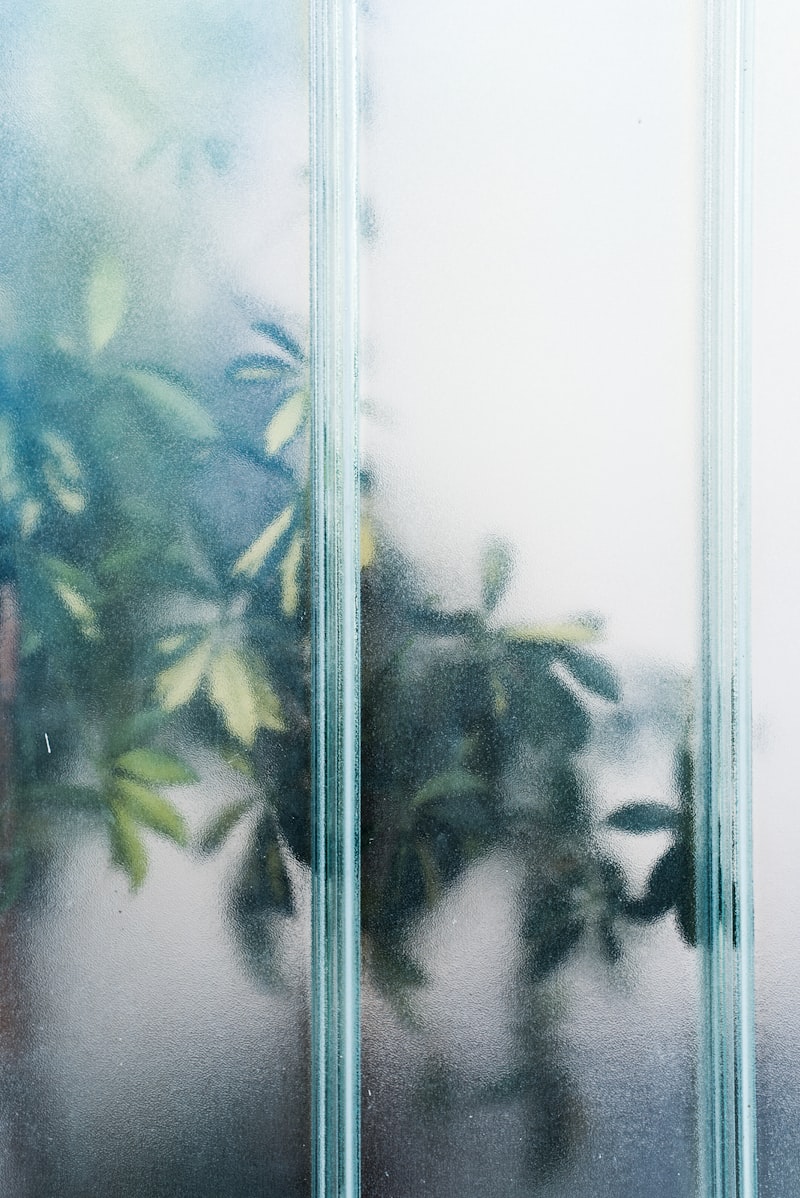

Frosted Polycarbonate Glazing swatch
Frosted (PC)
Window inserts are polycarbonate (PC) glazing as standard, offering high light transmission and impact resistance. Tempered glass is available as an option.
Garage Door Lift installed windowed garage door - real customer home
07 / COMPONENTS

Hardware

Torsion Spring
Torsion Spring
Black oil tempered. Options: e-coated, powder coated.
Track & Angle
Track & Angle
Vertical track, horizontal track, joint angle.

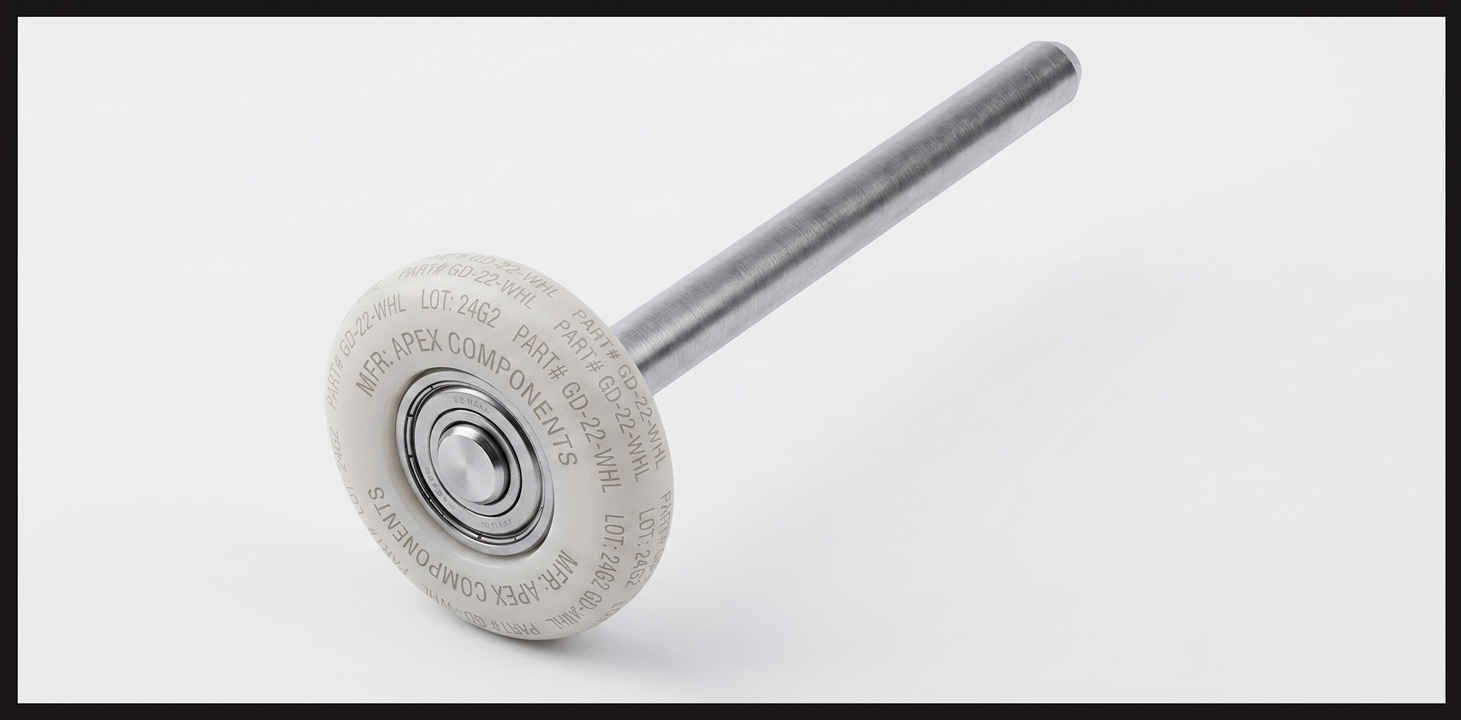

Roller
Roller
Nylon and steel. 2" or 3" diameter, with a 4" or 7" stem length.
Hardware Box
Hardware Box
Complete kits: 9x7 / 9x8 / 16x7 / 16x8 etc.
08 / COVERAGE

Warranty

DOOR PANELS25 years, normal residential use
HARDWARE3 years

Limited materials warranty for qualifying manufacturing defects under normal use. Applies to the original purchaser, is non-transferable, and requires proof of purchase. Excludes misuse, accidental damage, neglect, improper installation, unauthorized modifications and normal wear. Labor, removal and reinstallation are not covered.
