PRODUCTS / LINE 06 / NON-INSULATED
06

Non-Insulated Panel Doors

A single-layer, pre-painted galvanized steel door built for straightforward, budget-friendly coverage — NON-INSULATED, without the foam core or thermal rating of our insulated lines.

REQUEST A QUOTE FOR THIS LINE DESIGN YOUR OWN DOOR →
Non-Insulated Panel Doors
FEATURES MODELS STYLES COLORS WINDOWS HARDWARE
01 / SPECIFICATION

Key features

◆
27Ga pre-painted galvanized steel construction
◆
Tongue and groove connection makes high strength and safety
◆
Single-layer panel — NON-INSULATED, no foam core
◆
Better design and machining guarantee no gap between sections
◆
A lighter, lower-cost door for detached garages and outbuildings
02 / MODELS

Door models

DATASHEET
Model A
Model A
CONSTRUCTION
1-9/16" (40mm), single layer, no foam core
THICKNESS27ga steel or as request
INSULATIONNONE — NON-INSULATED
Model B
Model B
CONSTRUCTION
1-9/16" (40mm), single layer, no foam core
THICKNESS27ga steel or as request
INSULATIONNONE — NON-INSULATED
Model C
Model C
CONSTRUCTION
1-9/16" (40mm), single layer, no foam core
THICKNESS27ga steel or as request
INSULATIONNONE — NON-INSULATED

Model names shown are placeholders — confirmed model numbers pending.

03 / STYLES

Door styles

Classic Cassette
Classic Cassette
Classic Cassette — Double Door
Double Door
Raised Ranch
Raised Ranch
Raised Ranch — Double Door
Double Door
04 / FINISH

Colors

BlackRAL 9005
WhiteRAL 9016
AlmondRAL 9005
SURFACE TEXTURE
Wood Grain — Black
Wood Grain — Black
Wood Grain — White
Wood Grain — White
Wood Grain — Almond
Wood Grain — Almond
05 / GLAZING

Window options

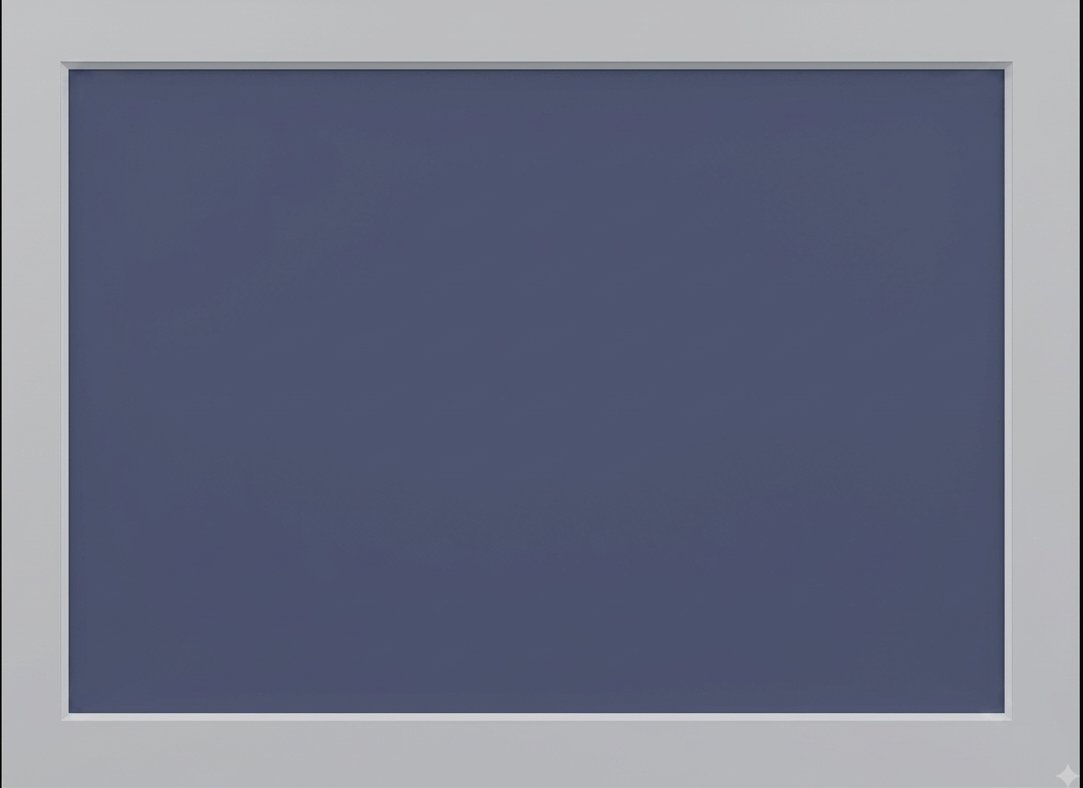

European Style Frame
European Style FrameCH-WD1001

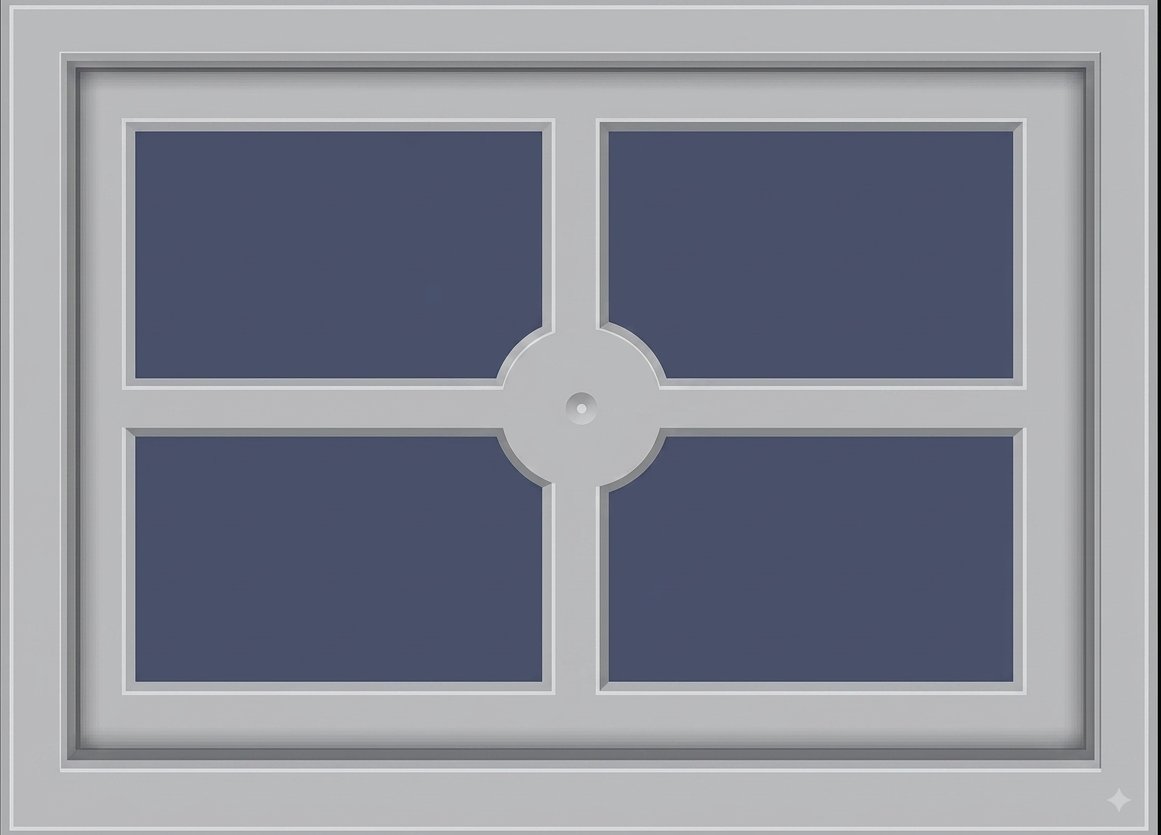

Square Cross Window
Square CrossCH-WD1002

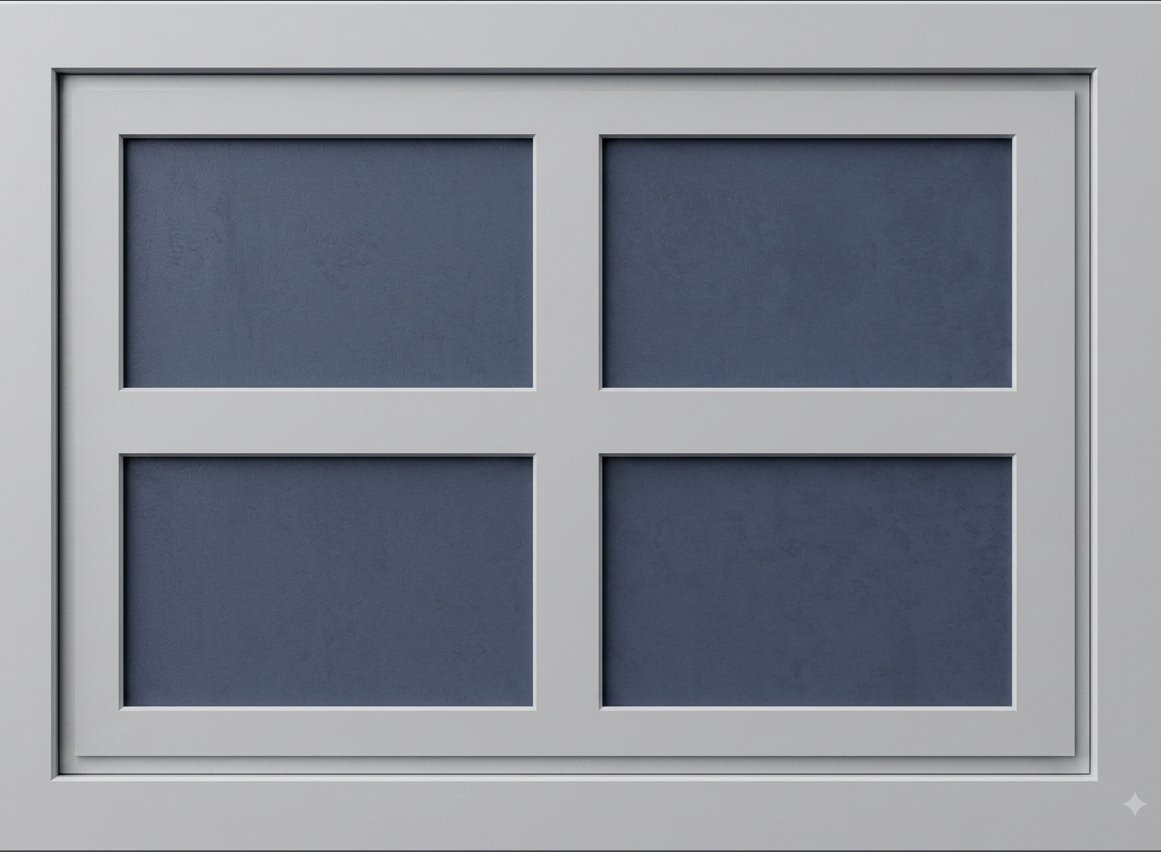

Cross Window
Cross WindowCH-WD1003

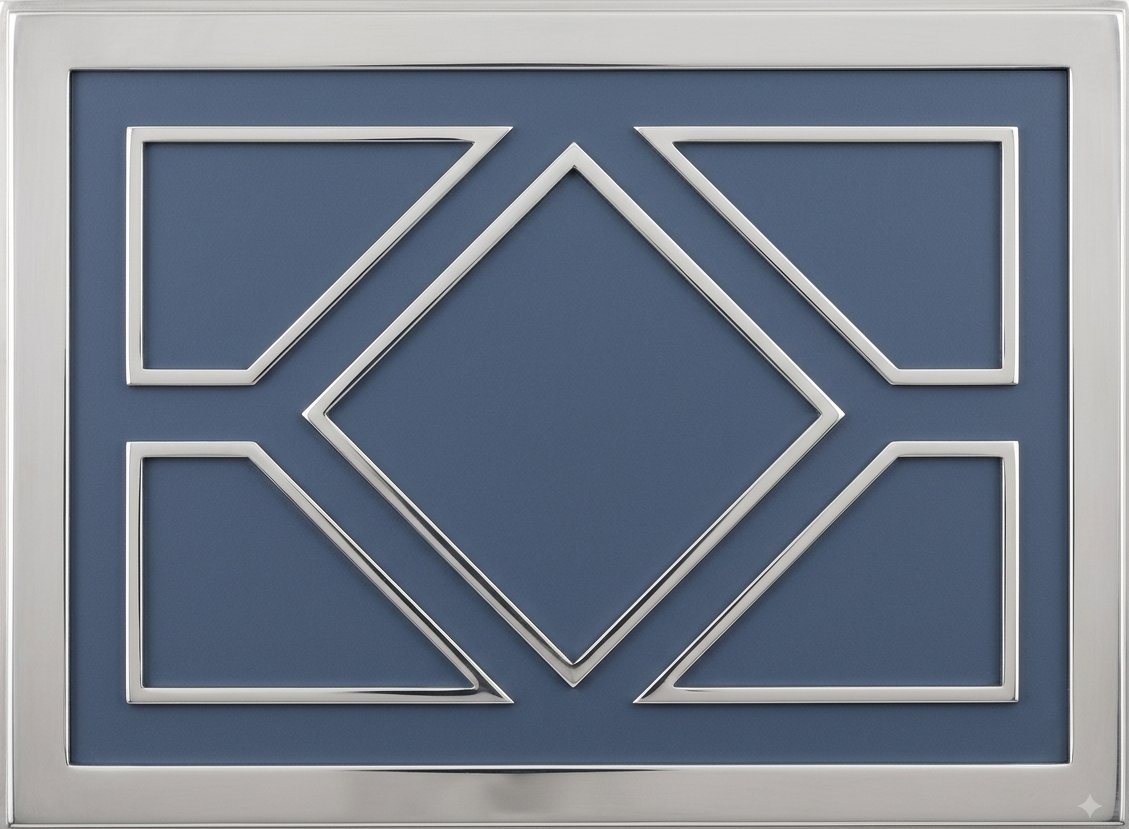

Diamond Window
Diamond WindowCH-WD1004

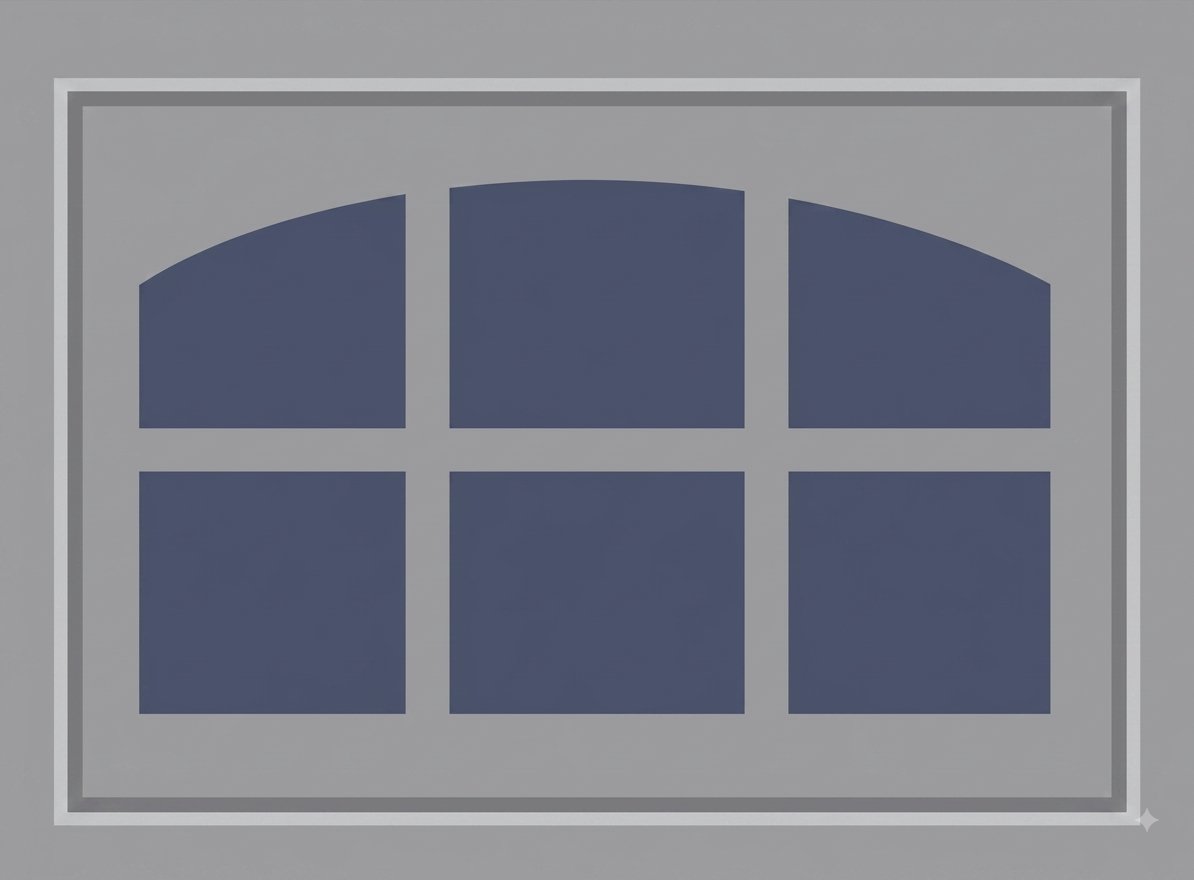

House-Like Window
House-LikeCH-WD1005

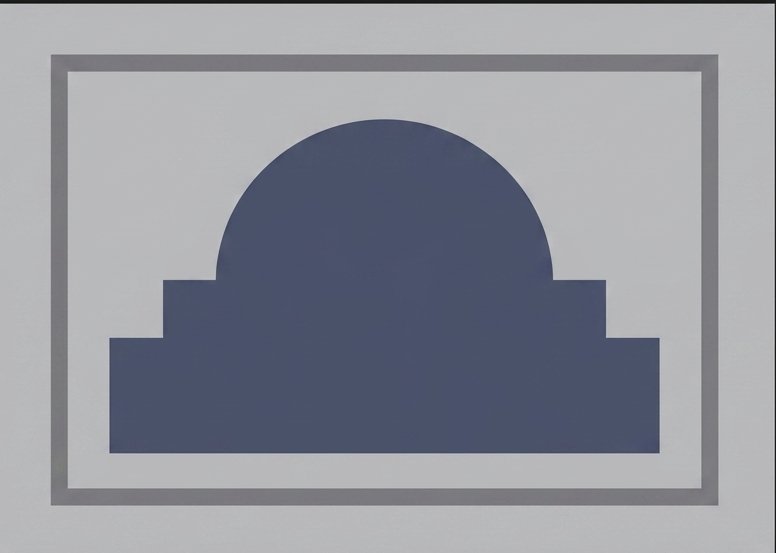

Mountain-Like Window
Mountain-LikeCH-WD1006

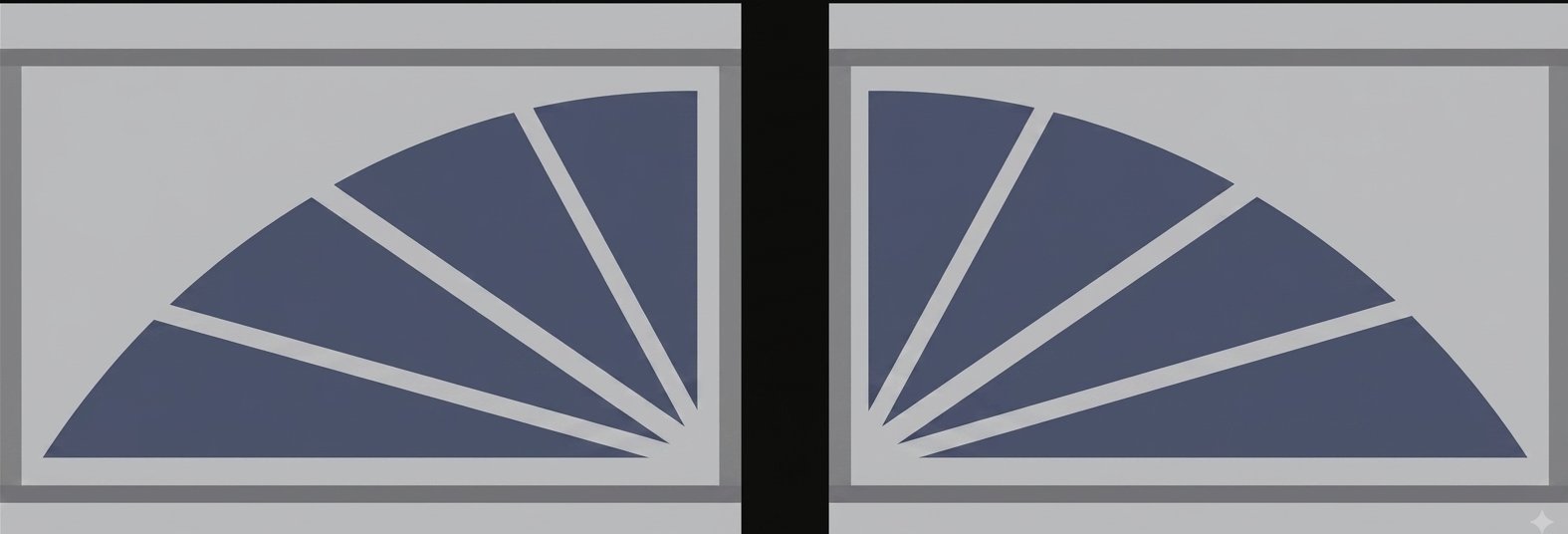

Sector Window A
Sector Window ACH-WD4001

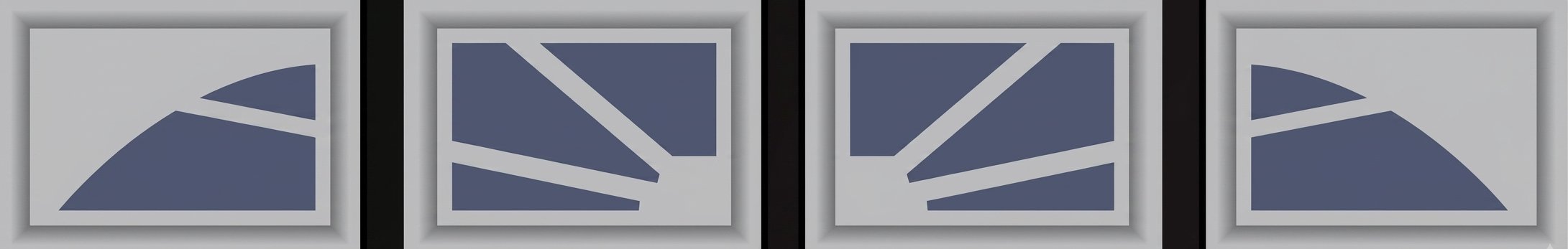

Sector Window B
Sector Window BCH-WD4003

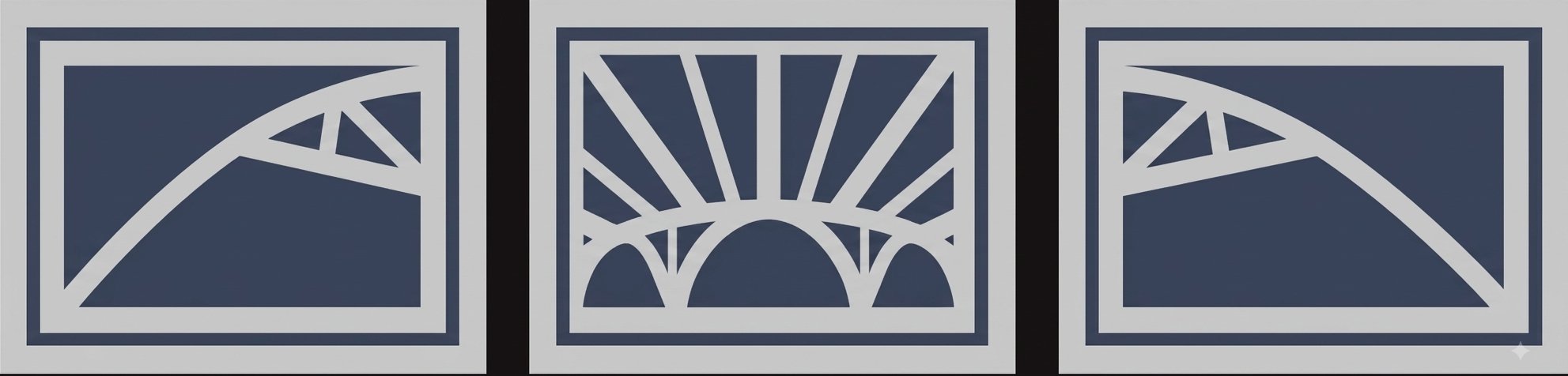

Sun Rising Window
Sun RisingCH-WD4002

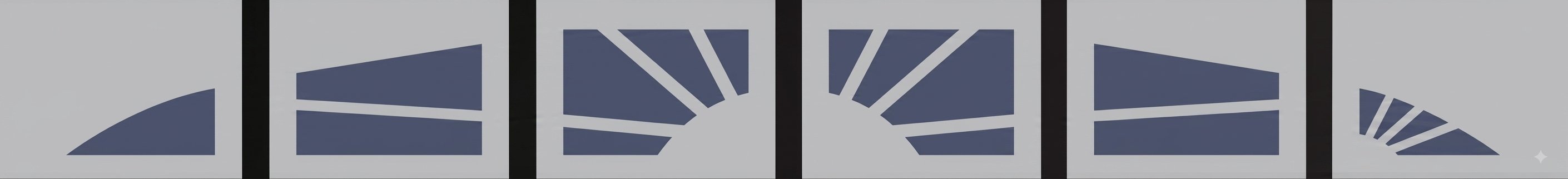

Radiation Window
Radiation WindowCH-WD4004
CH-WD3003 window
Panel FrameCH-WD3003
CH-WD3004 window
Diamond LatticeCH-WD3004
CH-WD3005 window
Arched ColumnCH-WD3005
CH-WD3006 window
Curved PanelCH-WD3006
CH-WD3007 window
Wide SunburstCH-WD3007
CH-WD3008 window
Curved Quad PanelCH-WD3008

Window frames are UV-protected and color-matched to the door panel finishes.

06 / GLASS

Types of glass

Clear PC Glass swatch
Clear
Frost PC Glass swatch
Frost
The glasses we use are mainly PC glass, which offers a high light transmission rate, heat insulation, high intensity and resistance to impact. Tempered glass can be chosen too.
Home with a windowed garage door
07 / COMPONENTS

Hardware

Torsion Spring
Torsion Spring
Black oil tempered. Options: e-coated, powder coated.

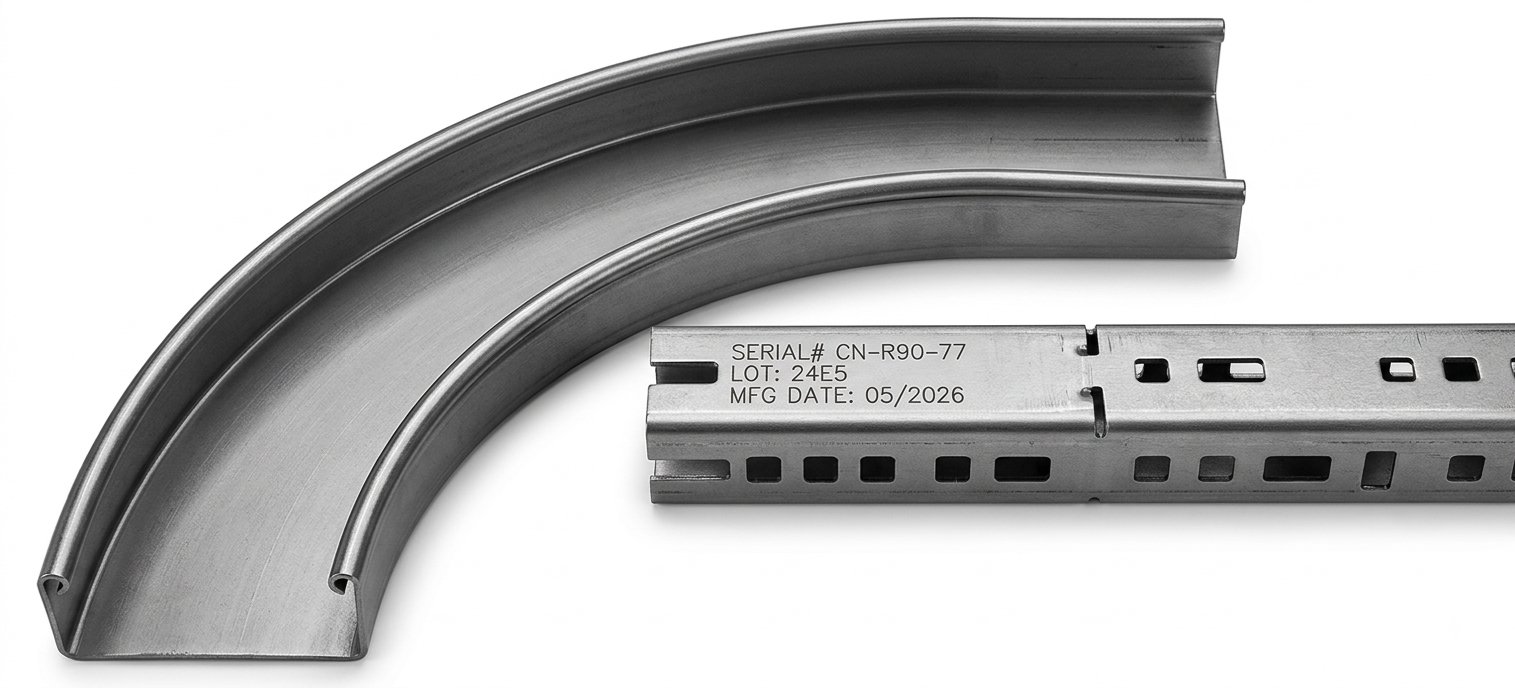

Track & Angle
Track & Angle
Vertical track, horizontal track, joint angle.

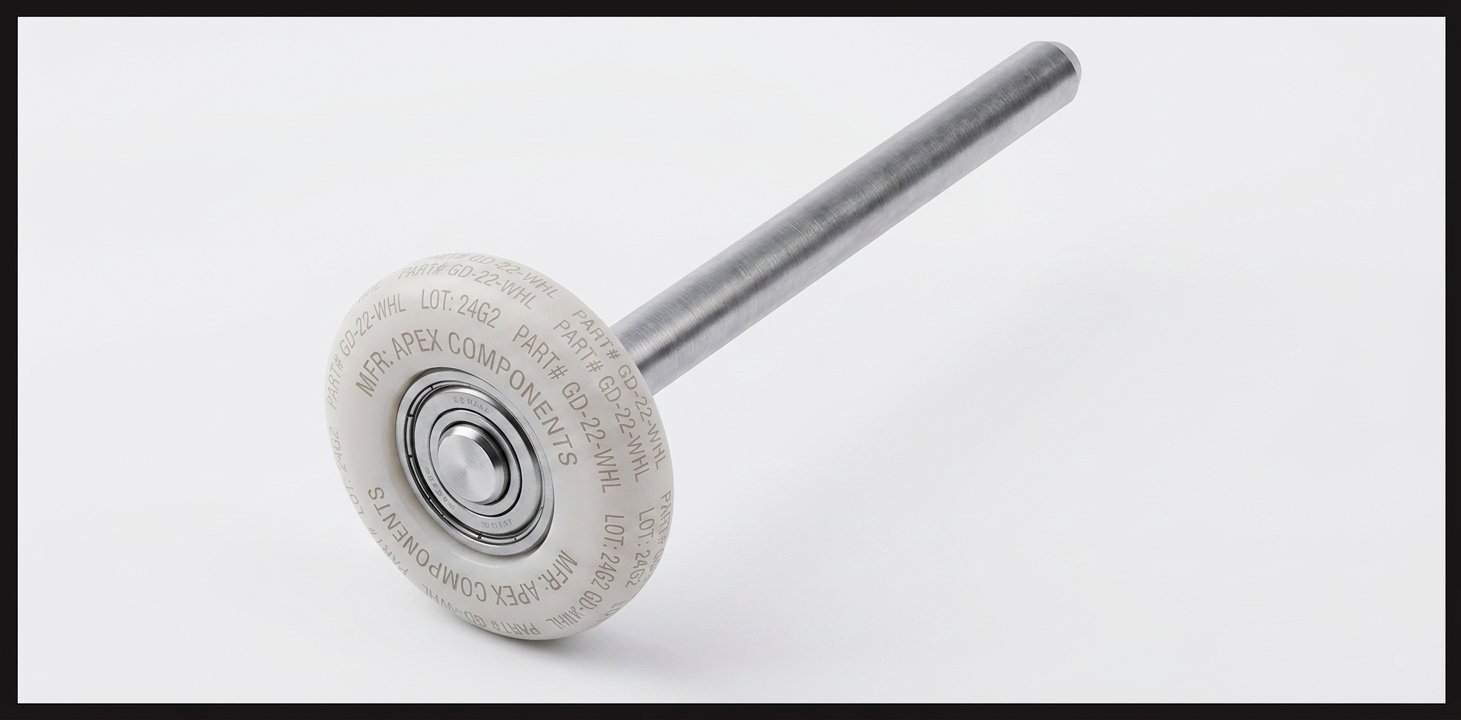

Roller
Roller
Nylon and steel. Sizes 2-4", 3-4", 2-7", 3-7".

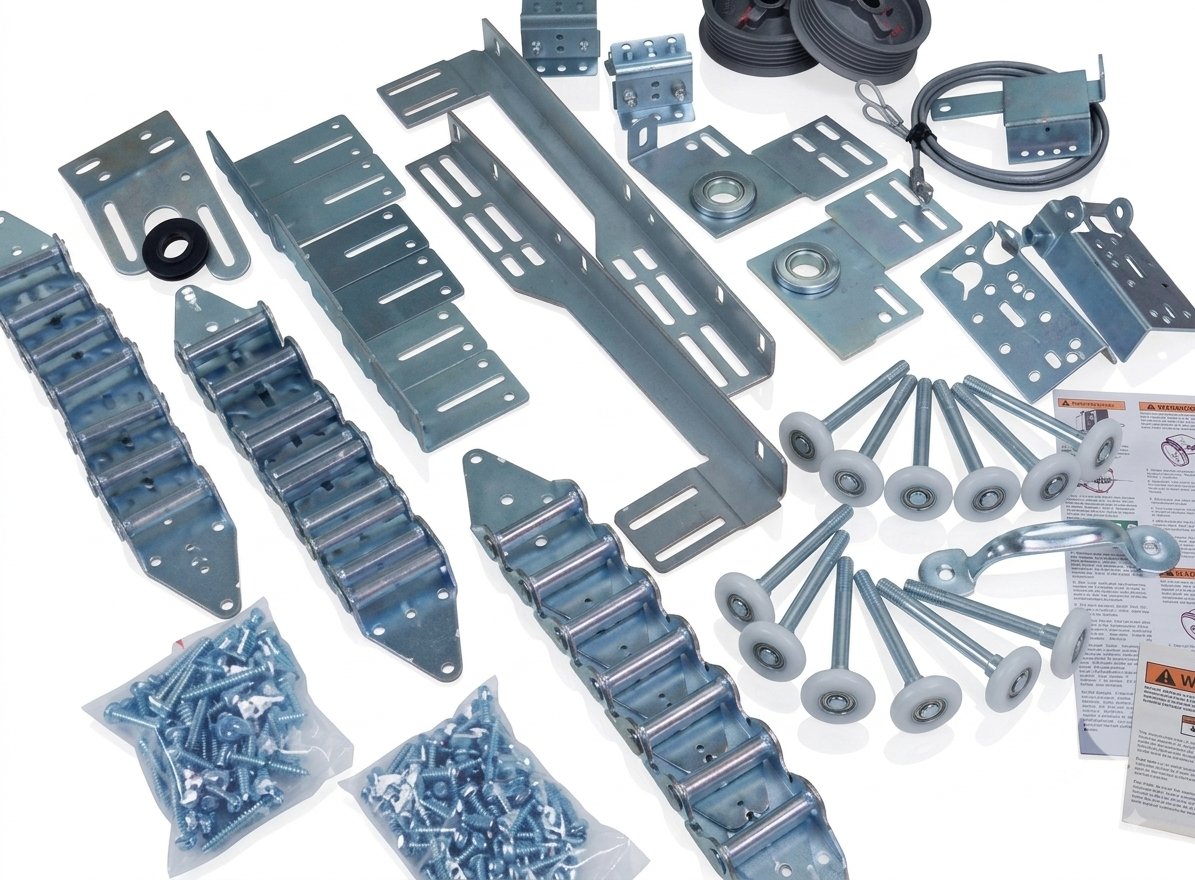

Hardware Box
Hardware Box
Complete kits: 9x7 / 9x8 / 16x7 / 16x8 etc.
LISTING ONLY — NO ONLINE CHECKOUT
